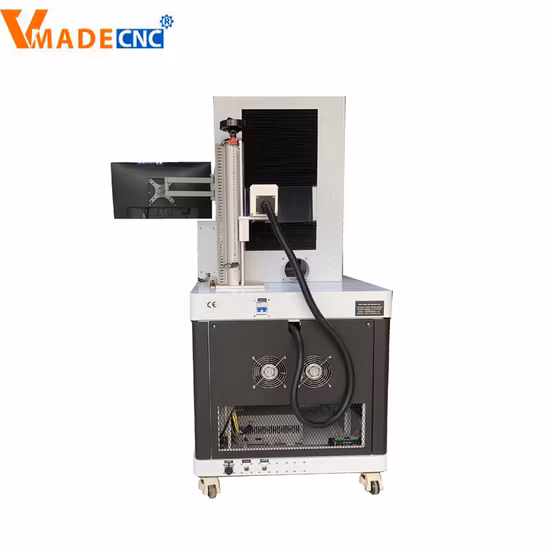

Portable Optical 20W 30W Fiber Laser Marking Machine with Raycus Laser Source

Products

Portable Optical 20W 30W Fiber Laser Marking Machine with Raycus Laser Source

Portable Optical 20W 30W Fiber Laser Marking Machine with Raycus Laser Source

Portable Laser Marking Machine 1.PRODUCT DESCRIPTION : Compared with the traditional mechanical marking, chemical corros

Send your inquiry

DESCRIPTION

Basic Info.
Model NO. HY-MF01
Overall Power Comsumption <=500W
Std. Marking Area 110*110mm, 180*180mm
Product Name Portable Laser Marking Machine
Application Material Metal and Most of Nonmetal
Option Marking Area 3000*300mm;
Marking Speed <=7000mm/S
Life Span 100000 Hours
Power Requirement 220V/50Hz&60Hz
Max. Power 20W/30W/50W
Laser Wavelength 1024nm
Laser Source Raycus/ Jpt/ Ipg
Cooling Method Air Cooling
Marking Line Width 0.01mm
Marking Depth <=0.3mm
Transport Package Plywood Box
Specification CE FDA SGS
Trademark HAIYI Laser
Origin Jiangsu/China
HS Code 8456110090
Production Capacity 1000sets/Year
Product Description

Portable Laser Marking Machine
1.PRODUCT DESCRIPTION :

Portable Optical 20W 30W Fiber Laser Marking Machine with Raycus Laser Source


Portable Optical 20W 30W Fiber Laser Marking Machine with Raycus Laser Source


Compared with the traditional mechanical marking, chemical corrosion, screen printing, printing ink etc., the Fiber laser marking machine carving has the advantages of low cost, high flexibility, environmental protection; It's easy to control and operation by the computer system. The laser beam on the workpiece surface generated by the strong permanent marker is its outstanding characteristic.

2. APPLICATION :
It is widely used for stainless steel, copper, aluminum and oxidation plating. It is often used in hardware, daily necessities, electrical appliances, mobile phone shell, precision parts, plastic, PC, ABS and other materials.

Portable Optical 20W 30W Fiber Laser Marking Machine with Raycus Laser Source


3.SPECIFICATION :
ModelHY-MF01
Laser Power20W/30W/50W
Laser Wavelength1064nm
Laser Frenquency20-80HZ
Standard Marking range110mm*110mm,180mm*180mm
Support FomartPLT,DFX,DST,AI,SDT,JPG,BMP,JPEG,GIF,TGA,PNG,TIF,TIFF,CAD,
CDR, DWG etc.
Cooling Method Air Cooling
Option Marking range300mm*300mm/400mm*400mm
Marking Depth<=0.3mm
Marking Speed<=7000mm/s
Minimum line width0.01mm
Repeatability accuracy±0.002mm
Electricity requirement220V/50Hz/60Hz/2A
the whole Power consumption500W
4.Advangtages :
1) Non- contact marking: Laser marking is processed to non- mechanical "knife", can be marked on the printing surface of any regular or irregular, and marking the workpiece does not produce internal stress,ensuring the accuracy of the workpiece. No corrosion on the work surface, no "tool" wear, no poison, no pollution.
2). Permanent: The markings will not subsided for the environmental relations (touch, acid and reducing gases, high temperature, low temperature, etc.)
3). High engraving precision: laser marking machine engraving items, fine lines, minimum line width of up to 0.04mm. The markings are clear, durable and beautiful. Laser marking can meet the needs of printing large quantities of data on minimal plastic parts. For example, we can print two-dimensional barcode with higher precision and higher definition, and have stronger market competitiveness compared with the way of stamping or marking.
4). The running cost is low: the marking speed is fast and the mark is formed at once, and the energy consumption is small, so the running cost is low. Although the laser marking machine has more equipment investment than the traditional marking equipment, it is much lower from the running cost and longer lifetime.
5). High Efficiency: The laser beam controlled by the computer can move at high speed (5~7 meters per second), and the marking process can be completed in a few seconds.6). Anti-fake: laser marking technology, carved out of the mark is not easy to imitate and change, to a certain extent, has a strong anti-fake.
5. OUR SERVICE :
1. 1 year Guarantee for the whole machine.
2. 12 months Guarantee and free spare parts supply during this period.
3. 24 hours on line service
4. 3-7 days lead time
5. We will provide the Instruction Book, Operational manual and Training Video
6. Provide technical support for the whole lifetime on line
7. TT/Ali Trade Assurance payment
8. Shipping By air, DHL, Sea.
6.ABOUT US :

Portable Optical 20W 30W Fiber Laser Marking Machine with Raycus Laser Source


Portable Optical 20W 30W Fiber Laser Marking Machine with Raycus Laser Source







7.FAQ:

Q1. How to select the suitable machine?
Tell us your material, detail requirements by words, pictures or video.
We will recommend you the suitable model with the reasonable price.
Q2. How about the lead time?
For the standard machine, the delivery time is 3-7 days after the payment.
For the non-standard machine, the delivery time is 7-15 days after the payment.
Q3. How to install and use it?
We have the instruction Book, Operational manual and Training Video inside the machine.
We also can provide the training on line by free.
Q4. How to do it if we meet the issue during the operation?
You can send the wrong information to us by mail, we can help us solve it by mail.
phone, or video communication.
Q5. If we want to learn how to operate the machine, Can you provide it?
Yes, we can. We can provide the on line training by video. We also provide free training
course in our company.
Q6. Do you provide the onsite service if we needed?
Yes. We can provide the onsite service if you needed. But need the customer pay for the transport, hotel, food and 60USD/day.
